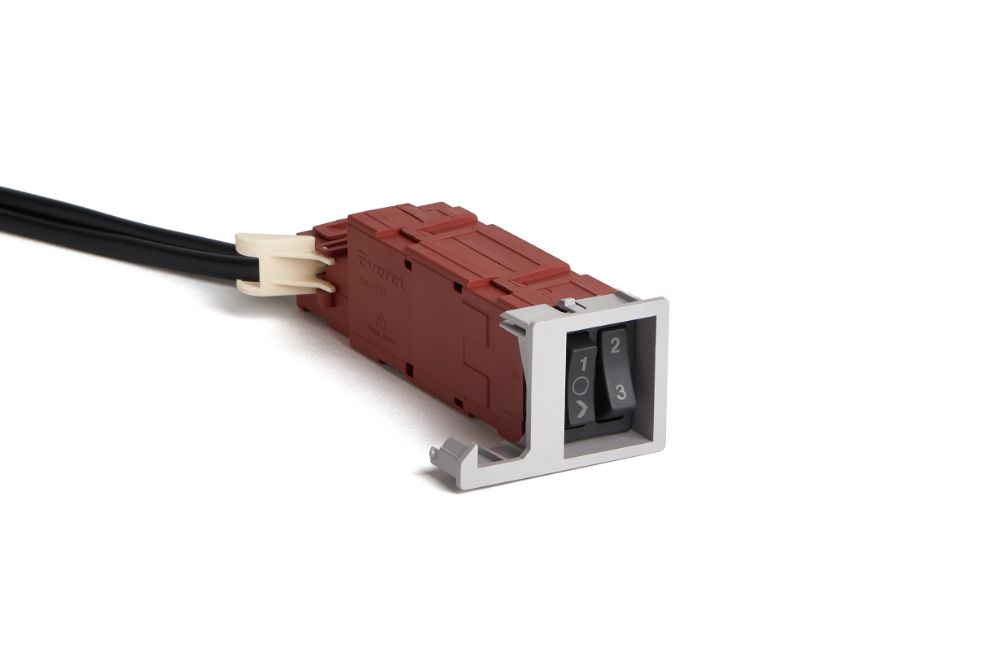

Solution composed by plastic box, power switches on circuit board, integrated lamp-holder. Motor and light power controlled by separate slide switches. Customization available for plastic parts, electrical layout, lampholder design.

Do you want more information? Need a quote?
contact us


1 switch for hood's light
1 switch for 2 different suction speeds
1 micro switch to enable aspiration
Rating: 8(3)A ENEC – T 125⁰ C
Rating: 8A UL – T65°C
Cycles: up to 10.000
Switch funcions: 1 step, SP or DP. 2 steps, DP. 3 steps, DP.
Custom frontal geometry
No visible wire to lamp-holder
Different solutions with single or double lamp-holder
Simpler version without lamp holder (wiring harness straight out from the plastic box)
Available version with push-button switches (TM5D)
